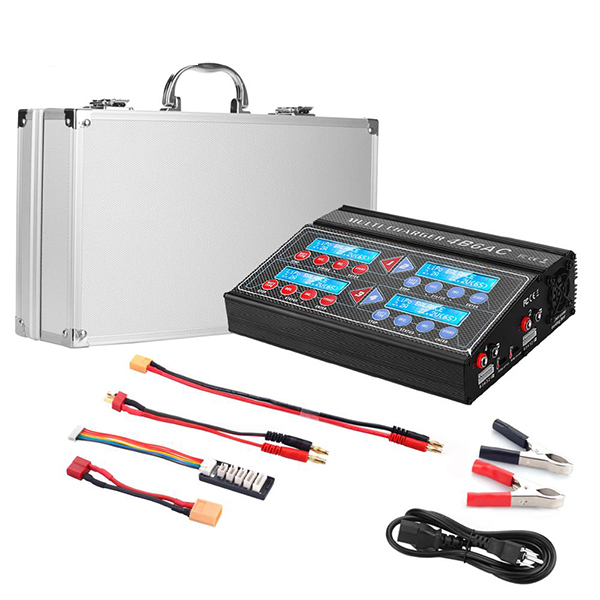

4B6AC80W RC Lipo Balance Charger/Discharger

Description

4B6AC 80W Lipo Balance Charger

Item No.:4B6AC 80W

Item Color:Black

AC input voltage:100-240V 50/60HZ

DC input voltage:11-18V

Charger circuit power:4 x 80W(320W)

Charge current range: 0.1-6.0A

Discharge current range: 0.1-2.0A

Current drain for balancing port:300mA/cell

NiCd/NiMH battery cell count:4X 1-15Cells

LiPo/LiFe/Lilon cell count:4X 1-6Cells

Feature:

4B6AC80W can charge four batteries packs simultaneously no matter what battery type you have.

4B6AC80W  is equipped with 4 high performance microprocessors to charge each battery individually.

It’s efficient cooling system ensures safe operation throughout the charge or discharge process.

With the 4B6AC80W  you’re able to balance charge a lipoly pack on Port-1 while series charging a LiFePo4 or NiMH battery on Port-2. All ports work independently of each other.

Spec.

DC Input: 11-18Volt

Input :AC 100-240V 50/60Hz

Charger circuit power: 4 x 80W(320W)

Charge current range: 0.1-6.0A

Discharge current range: 0.1-2.0A

Current drain for balancing port: 300mA/cell

NiCd/NiMH battery cell count::4X 1-15Cells

LiPo/LiFe/Lilon cell count: 4X 1-6Cells

Pb battery voltage:4X  2-20V

Dimension: 230mm X 150mm X 40mm

Weight: 840g

Customized Packaging

There are lots of different battery Charger packaging ways that you can custom, for example, blister card package, brick package, plastic package, kraft paper package, inner box & outer box.

We will meet your requirements.

Blister card package

Shrink wrap package

Bulk package

Kraft paper package

Industrial package

Consume package

Inner box & outer box
